Acoustifence® (Patented)
Noise Reducing Fences
FEATURES
- E2E-IR (EDGE TO EDGE INTERNALLY REINFORCED)
- MVH (MODULAR, VERTICAL OR HORIZONTAL DEPLOYMENT)
- MMR (MOLD & MILDEW RESISTANT)
- HTS (HIGH TENSIL STRENGTH, 1,974 PSI)
- STANDARD COLOR – BLACK (CUSTOM COLORS AVAILABLE AT A PREMIUM PRICE)
The Right Material – Acoustifence
Acoustifence® AF-6 is a patented, highly effective, yet simple to install, outdoor acoustical barrier. The U.V. and mold resistant qualities of Acoustifence make it uniquely suited to outdoor use. You can also paint it to blend in to any environment.
A flexible material, Acoustifence yields coincidental gains in attenuation at those specific frequencies where rigid barriers have strong deficiencies. As a result you will see much higher levels of performance using Acoustifence than you would using typical construction materials. This also means that Acoustifence is a great solution compared to a wooden fence or any other type of reflective barrier.
Ease of Use

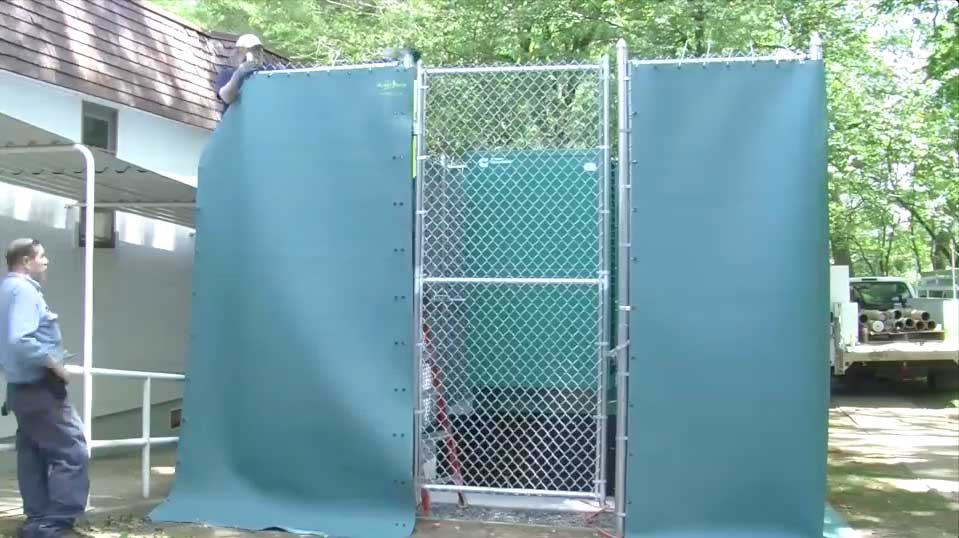

AF is extremely easy to install. It comes equipped with standard edge reinforcement and mounting grommets. You can secure it to a chain link fence, sandwich it between a wooden shadow box fence, or secure it to a frame as a stand alone material. This allows for a quick installation and a quick resolution to any noise complaints.
We offer installation suggestions for each type of installation.
Details
Acoustifence is 1/8” thick and comes in standard sizes of 6’ x 30’. You can also order custom lengths and if your project involves greater heights, It can be installed vertically rather than horizontally.
AF has an acoustical performance of STC 27 or STC 30, based on the selected model. This gives you a transmission loss of either 27dB or 30dB through the material. It is worth noting that the level of attenuation of all outdoor barriers is affected by a variety of factors including end diffraction, angle of diffraction, wind direction, humidity and temperature.
Don’t Make an Expensive Mistake with MLV
- MLV-based fencing products are not the same as our patented Acoustifence or Pickleblok
- Their tensile strength ranges from only 300 to 600 pounds per square inch, as such they easily tear
- Acoustifence and Pickleblok have a tensile strength of 1,974 pounds per square inch
- This level of tensile strength allows our products to survive hurricane force winds
- They use fasteners that fail under typical stresses, while our Acoustilok fasteners are rated at 2,000 pounds
We have spent over 15 years developing our patented Acoustifence and Pickleblok and their evolution sets them apart from MLVs. Buying cheap MLV products may seem like a great way to save money, but how long will it last?
The Acoustilok
One Ton Fastening System
Acoustifence® Project Videos

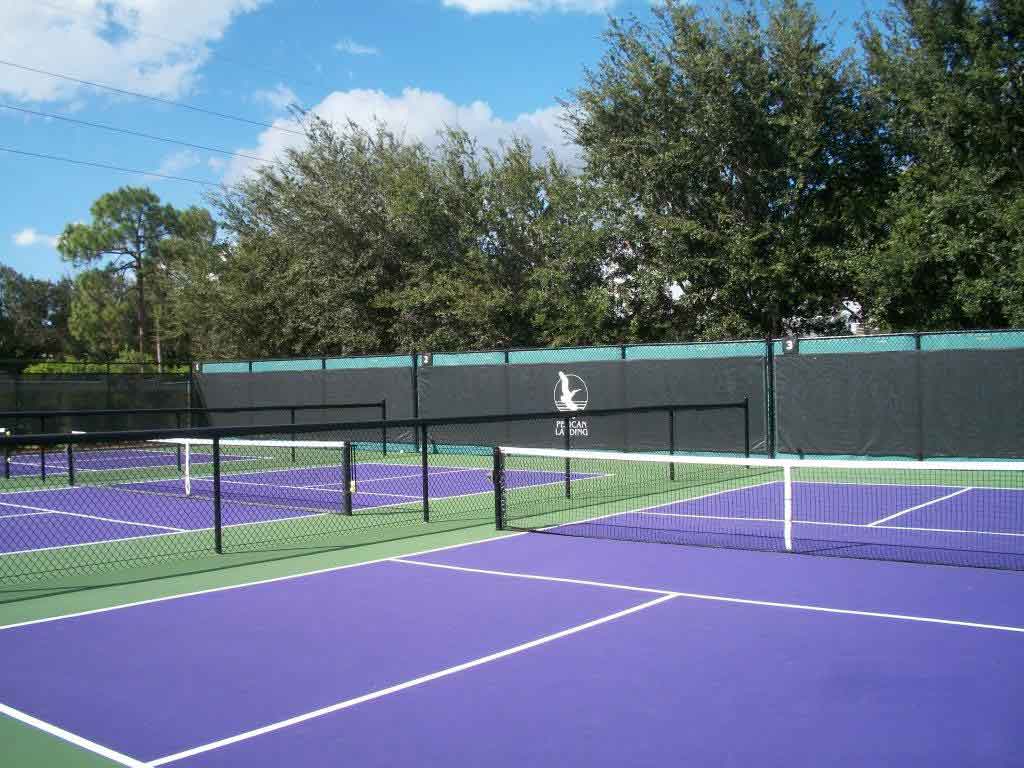

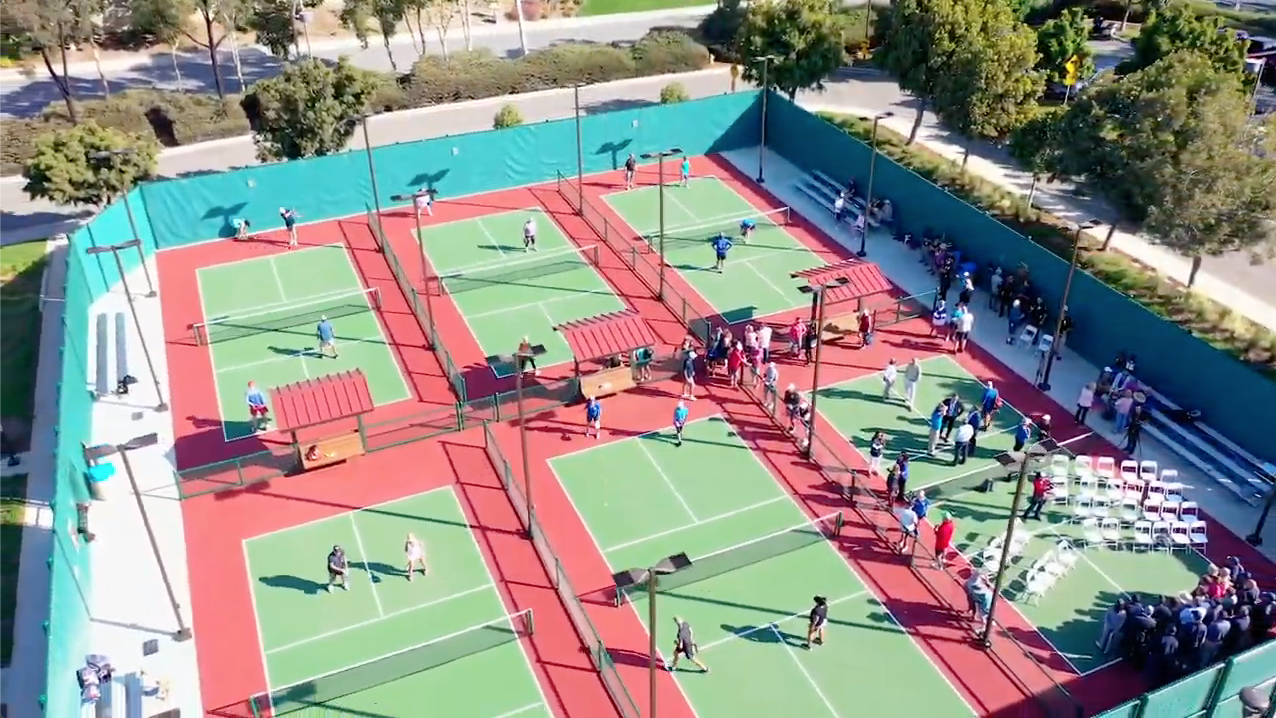

Poinsettia Park Pickleball Project
Academy Electric – Acoustifence Installation Time-Lapse
King Fence Acoustifence Installation Video
Acoustifence Testimonial Video
Booster Pump Noise Barrier Video
Acoustifence® – Noise Reducing Fences

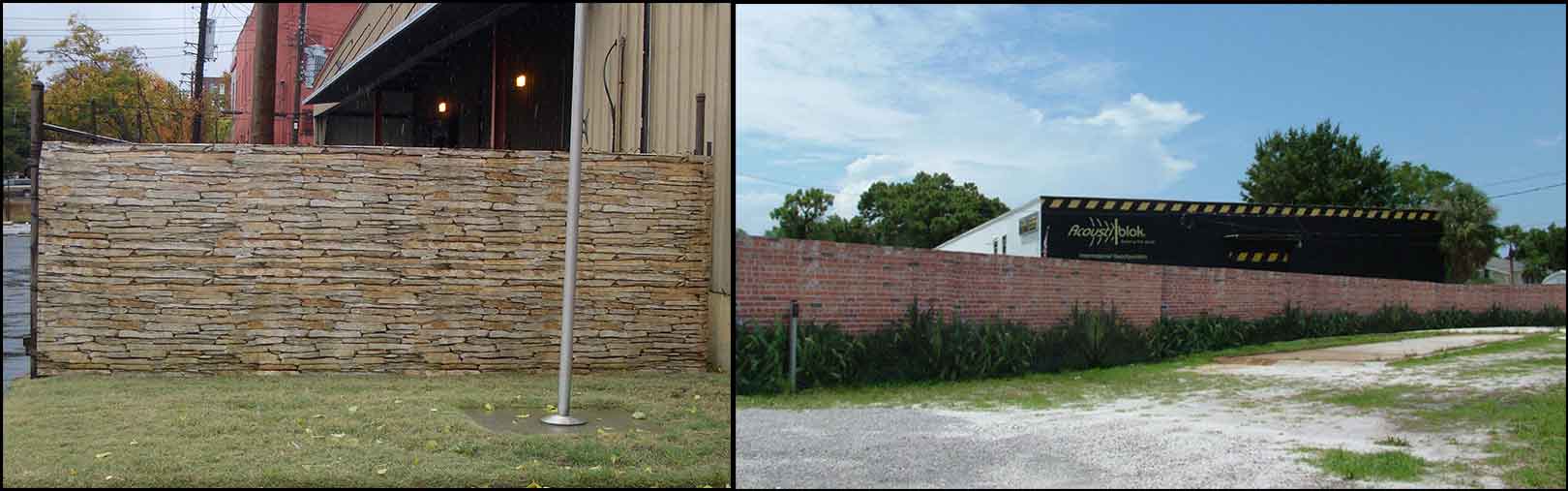

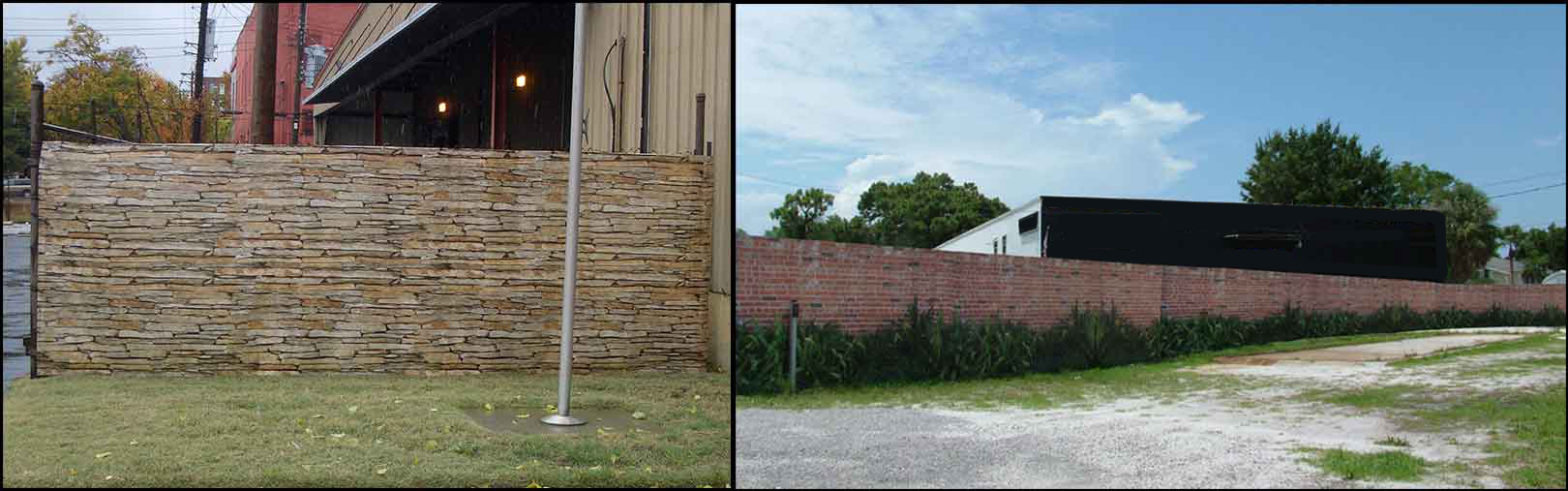

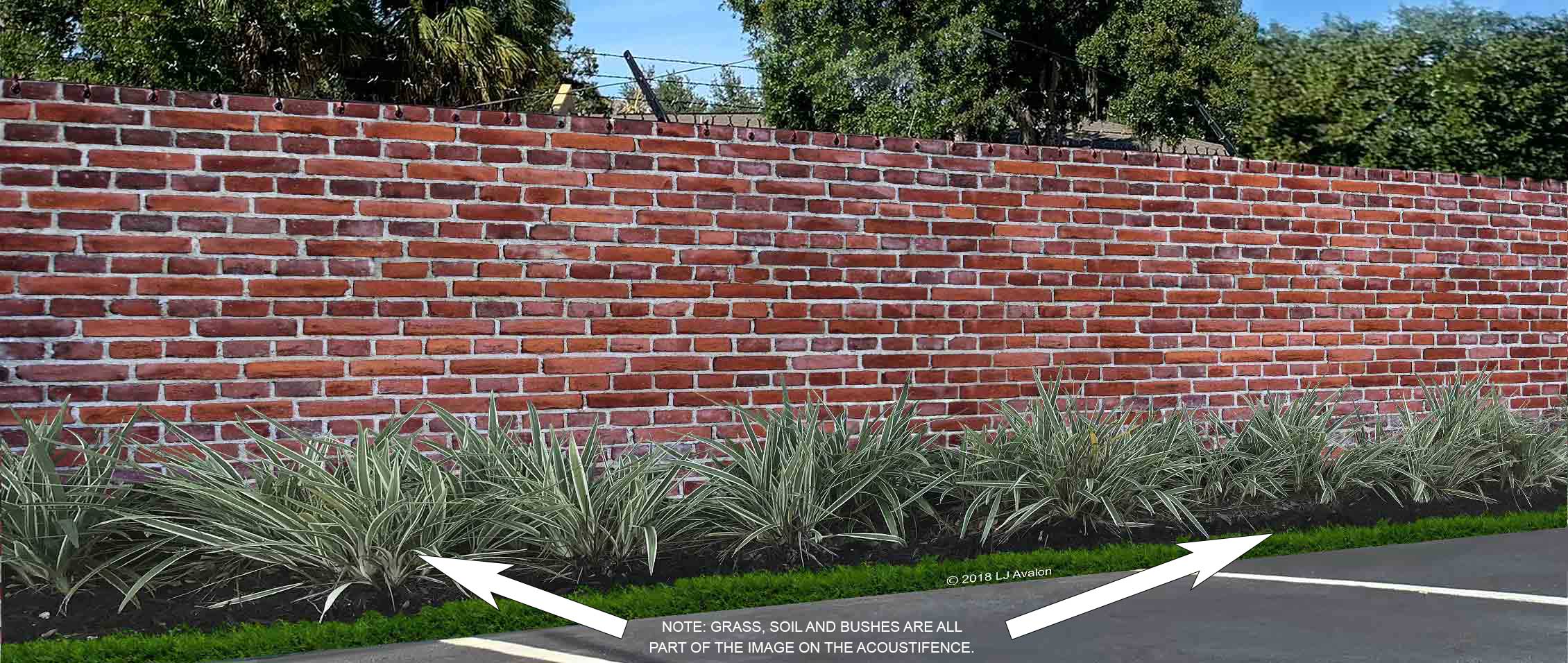

This is our beautiful patented “Foliage” Acoustifence®

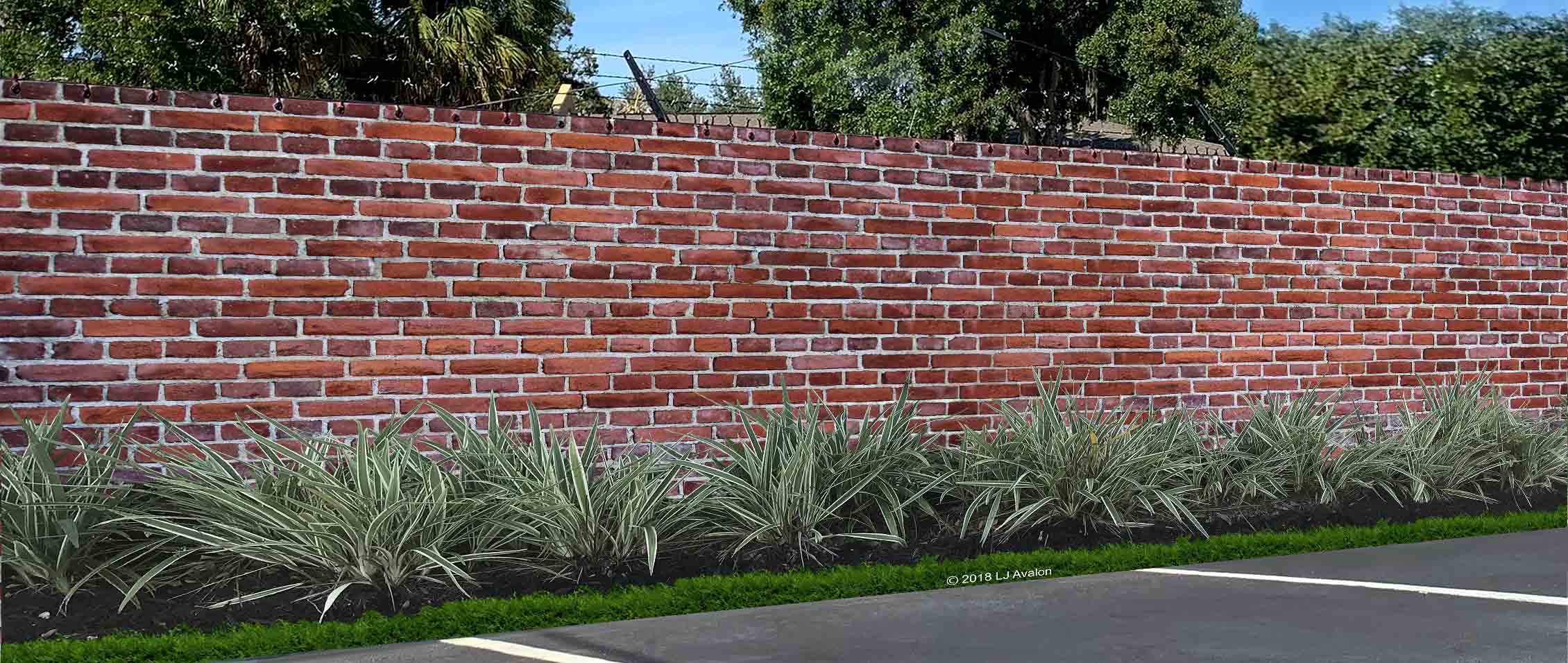

All of the brick, foliage and grass is HD printed over the eighth inch thick patented Acoustifence.

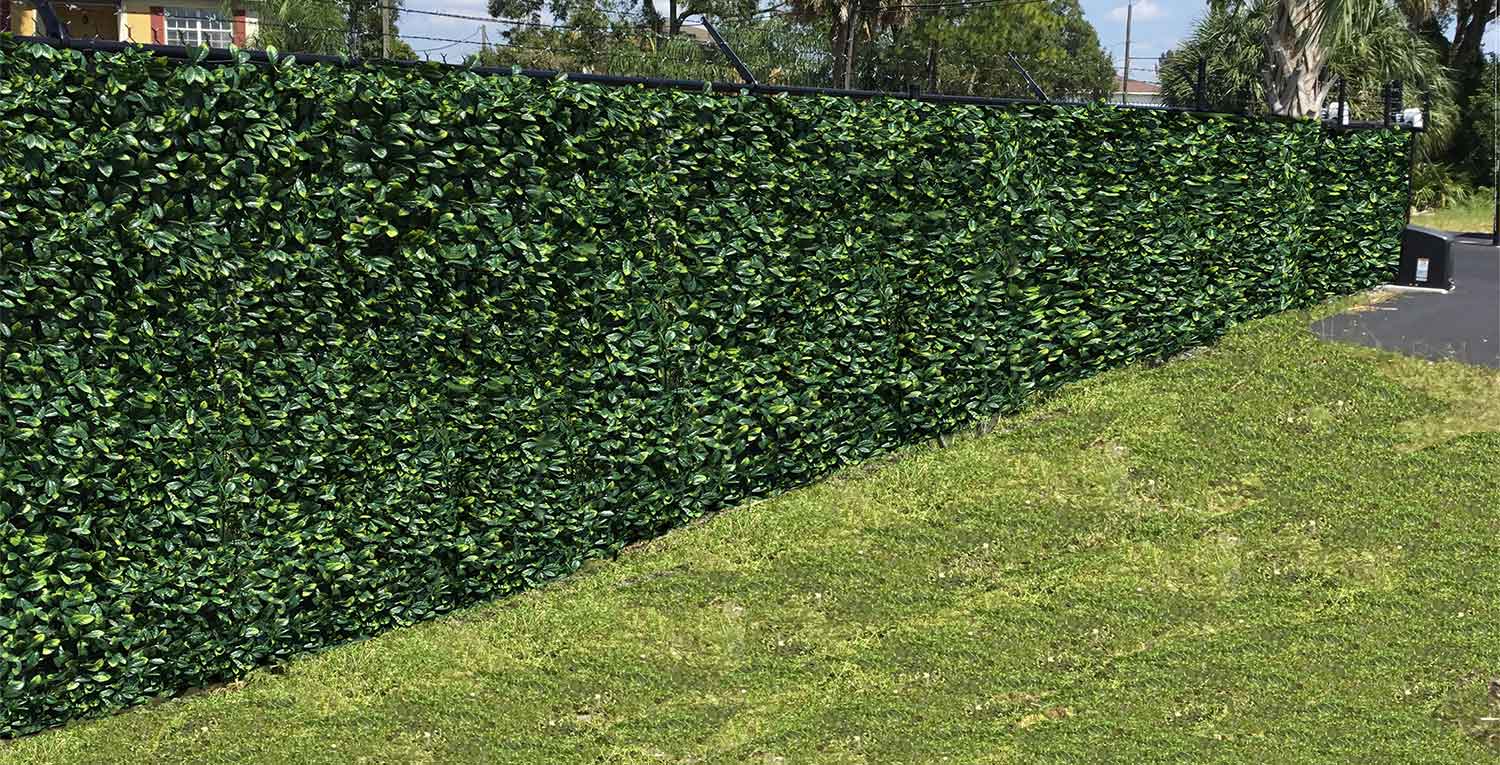

(Note: Foliage and Landscape attachments are not sound barriers. To create your own custom graphic, submit a high resolution photo)
The all new patented HD foliage Acoustifence. Exceptionally beautiful foliage prints with high STC sound blockage are available. The industrial quality, 1/8 inch Acoustifence material is easily suspended from existing PVC, chain link or other structures and is tested to withstand over 200 mph wind loads.
Acoustifence® – Noise Reducing Fences
Acoustifence® – Noise Reducing Fences

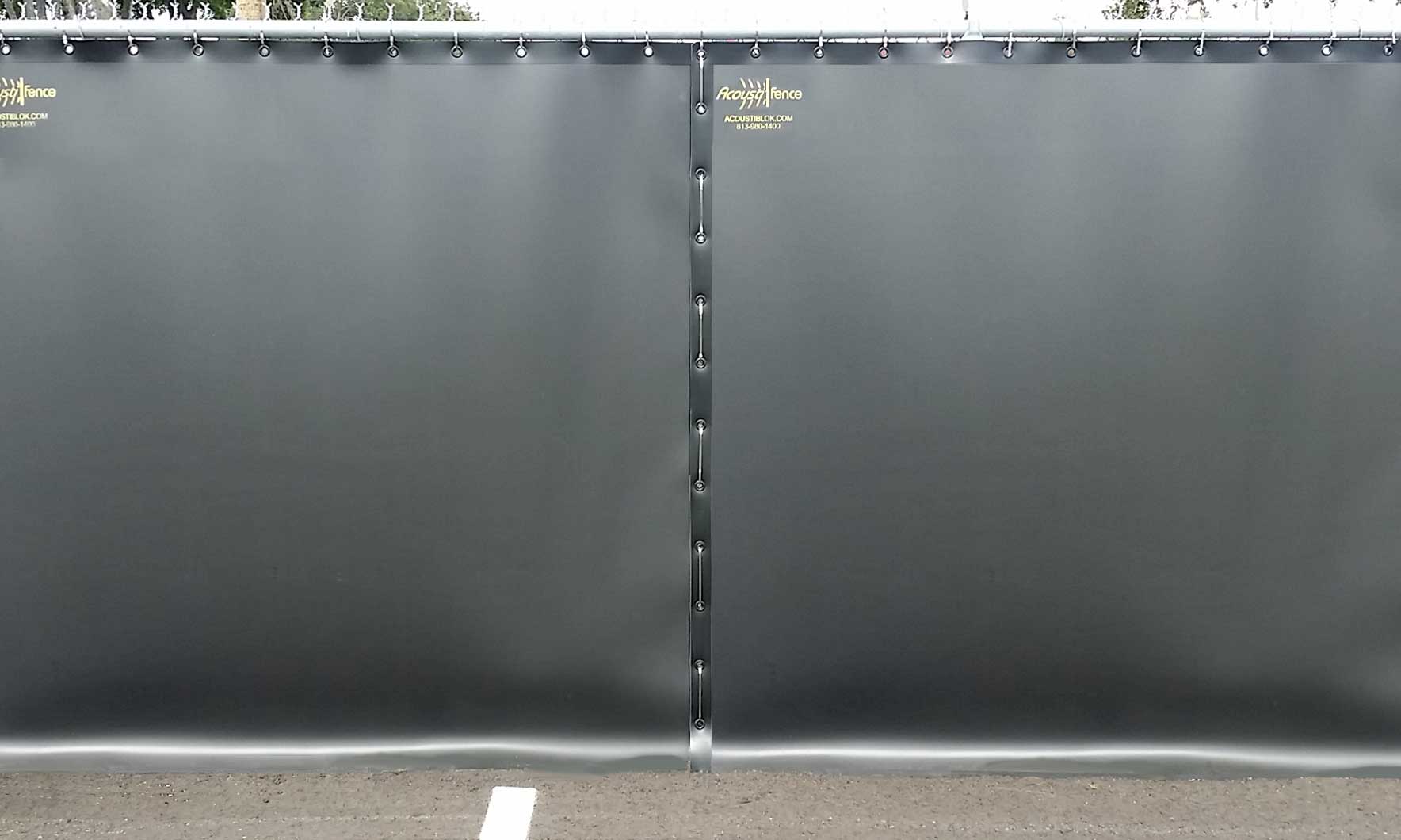

Acoustifence Installed with Stainless Steel Ties
Stainless Steel Ties
