Acoustifence-Noise Reducing Fences

Acoustifence® (Patented)

Noise Reducing Fences

The Right Material

Acoustifence-Noise Reducing Fences – Acoustifence® AF-6 is a patented, highly effective, yet simple to install, outdoor acoustical barrier. The U.V. and mold resistant qualities of Acoustifence make it uniquely suited to outdoor use. You can also paint it to blend in to any environment.

Acoustifence is a flexible material. This yields coincidental gains in attenuation at those specific frequencies where rigid barriers have strong deficiencies. As a result you will see much higher levels of performance using Acoustifence than you would using typical construction materials. This also means that Acoustifence is a great solution compared to a wooden fence or any other type of reflective barrier.

Ease of Use

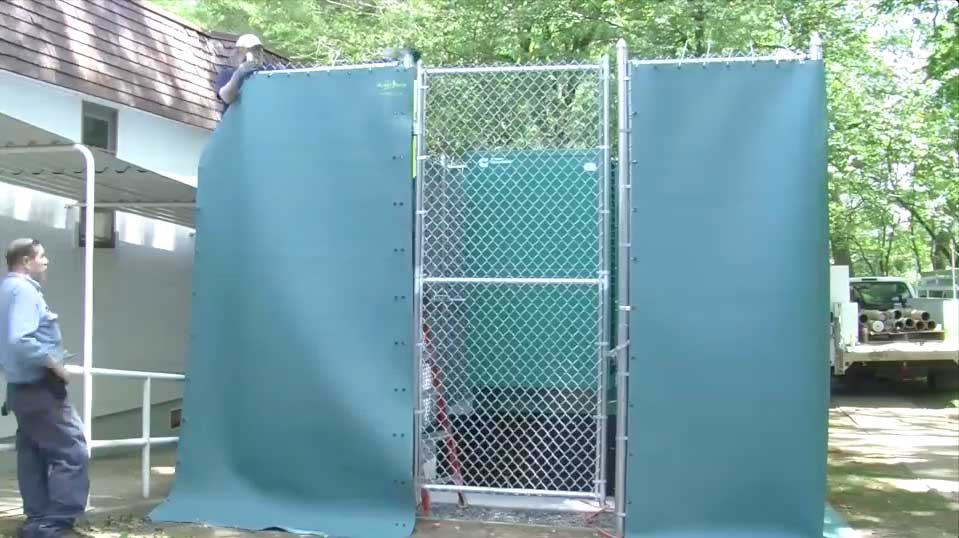

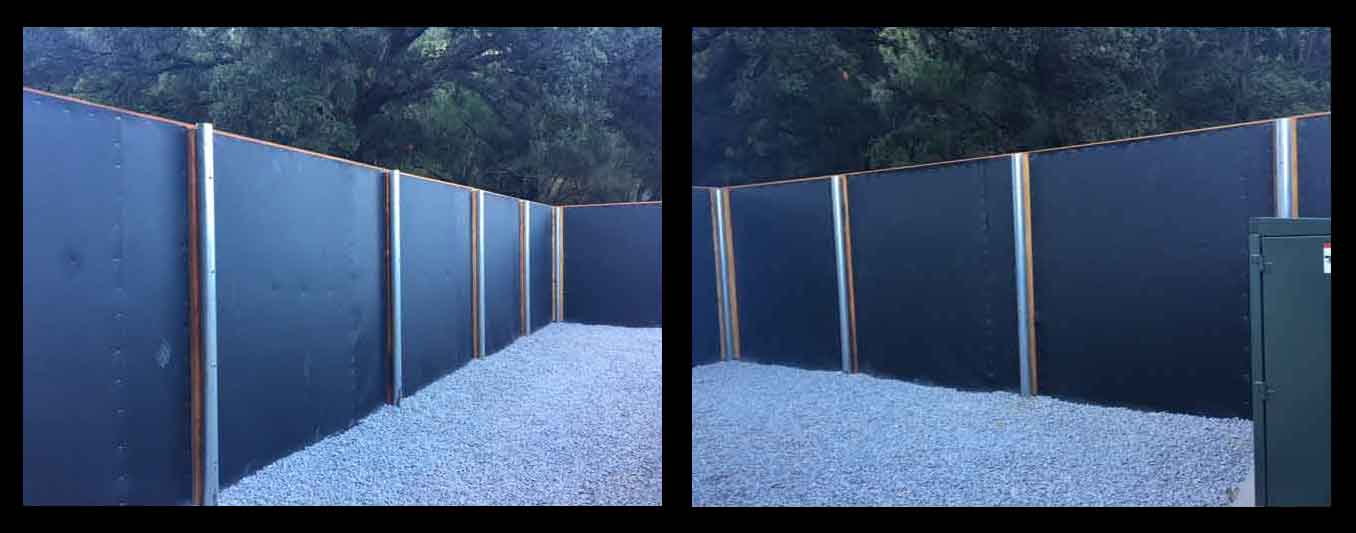

Acoustifence is extremely easy to install. You can secure it to a chain link fence, sandwich it between a wooden shadow box fence, or secure it to a frame as a stand alone material. This allows for a quick installation and a quick resolution to any noise complaints.

Acoustifence comes equipped with standard edge reinforcement and mounting grommets. We offer installation suggestions for each type of installation.

Details

Acoustifence is 1/8” thick and comes in standard sizes of 6’ x 30’. You can also order custom lengths and if your project involves greater heights, Acoustifence can be installed vertically rather than horizontally.

Acoustifence has an acoustical performance of STC 27 or STC 30, based on the selected model.  This gives you a transmission loss of either 27dB or 30dB through the material. It is worth noting that the level of attenuation of all outdoor barriers is affected by a variety of factors including end diffraction, angle of diffraction, wind direction, humidity and temperature.

Contact Us

Feel free to contact us to speak with one of our Acoustifence specialists. We look forward to helping you with your outdoor noise and sound issues.

video
play-sharp-fill
video
play-sharp-fill
video
play-sharp-fill

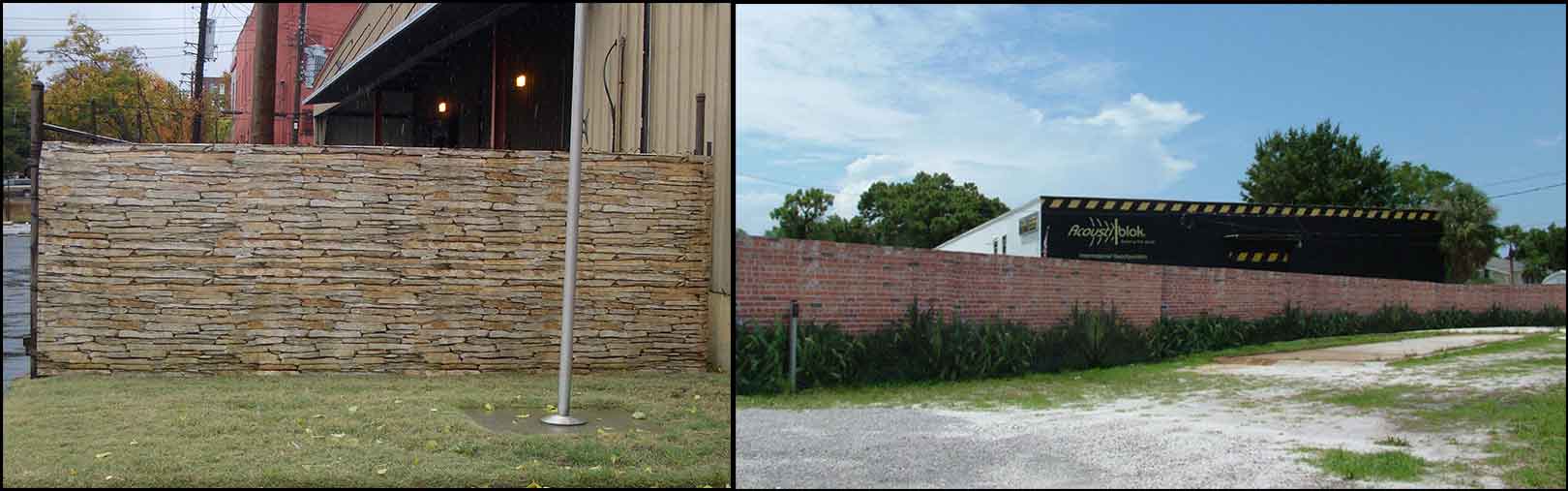

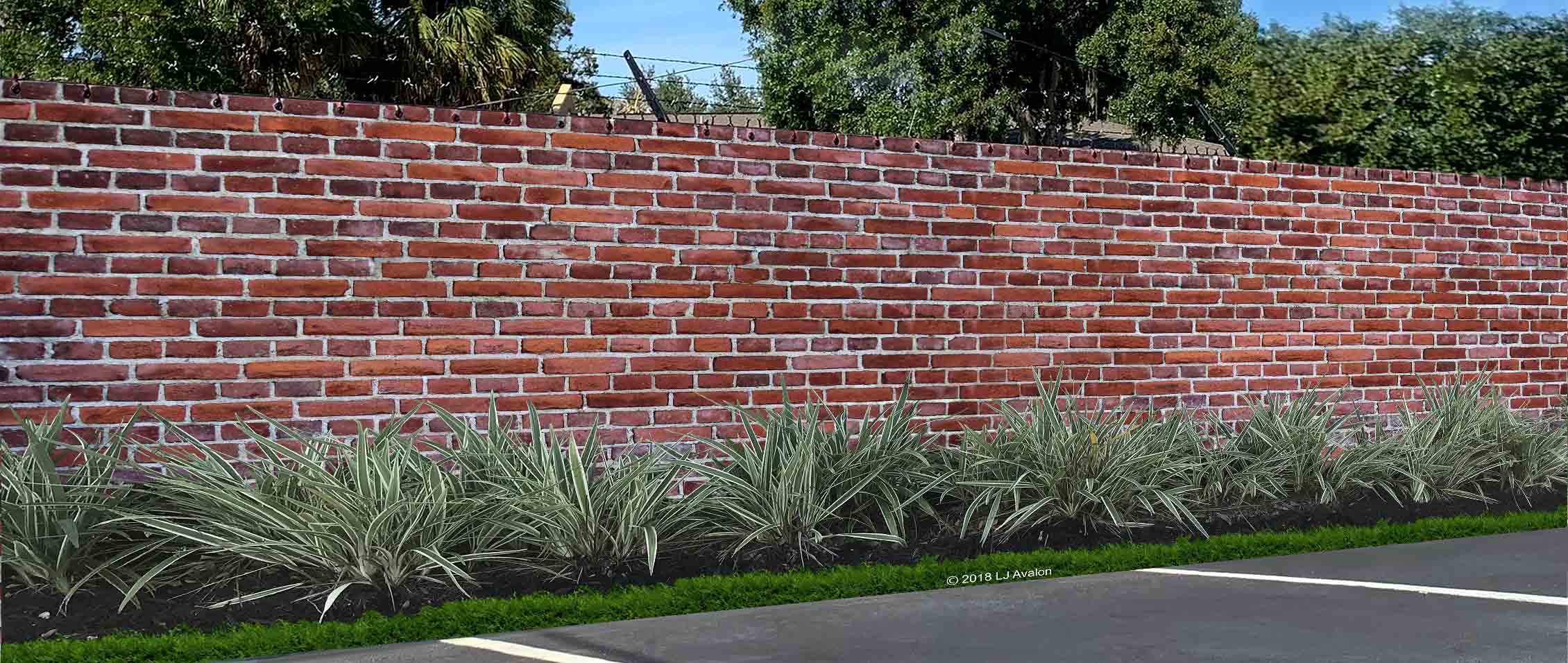

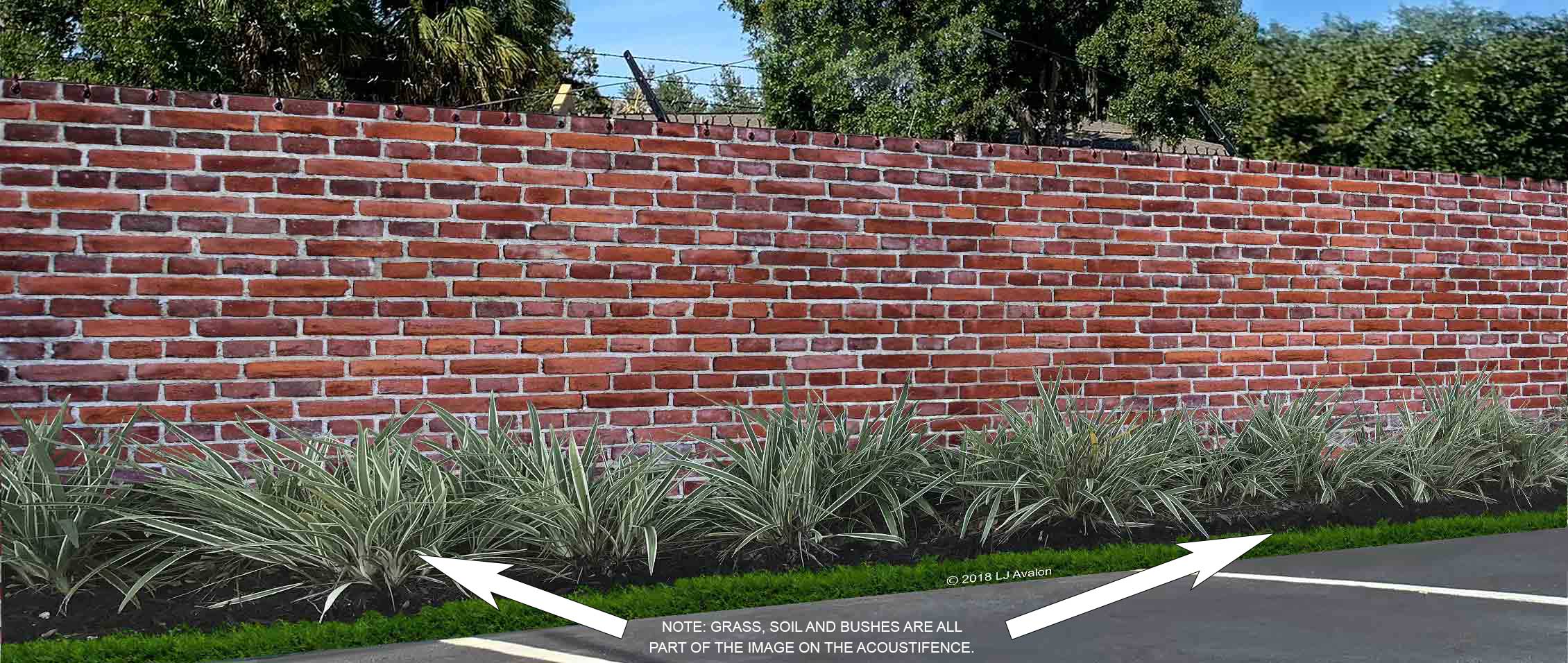

This is our beautiful patented “Foliage” Acoustifence®

All of the brick, foliage and grass is HD printed over the eighth inch thick patented Acoustifence.

Acoustifence-Noise Reducing Fences
Acoustifence-Noise Reducing Fences
Acoustifence-Noise Reducing Fences

The all new patented HD foliage Acoustifence.  Not only high STC sound blockage but exceptionally beautiful foliage prints are available as well.  The 1/8 inch Acoustifence material is easily suspended from existing PVC, chain link or other structures.  Easily installed, the material is tested to withstand over 200 mph wind load.  Industrial Quality.

Acoustifence-Noise Reducing Fences
Acoustifence-Noise Reducing Fences

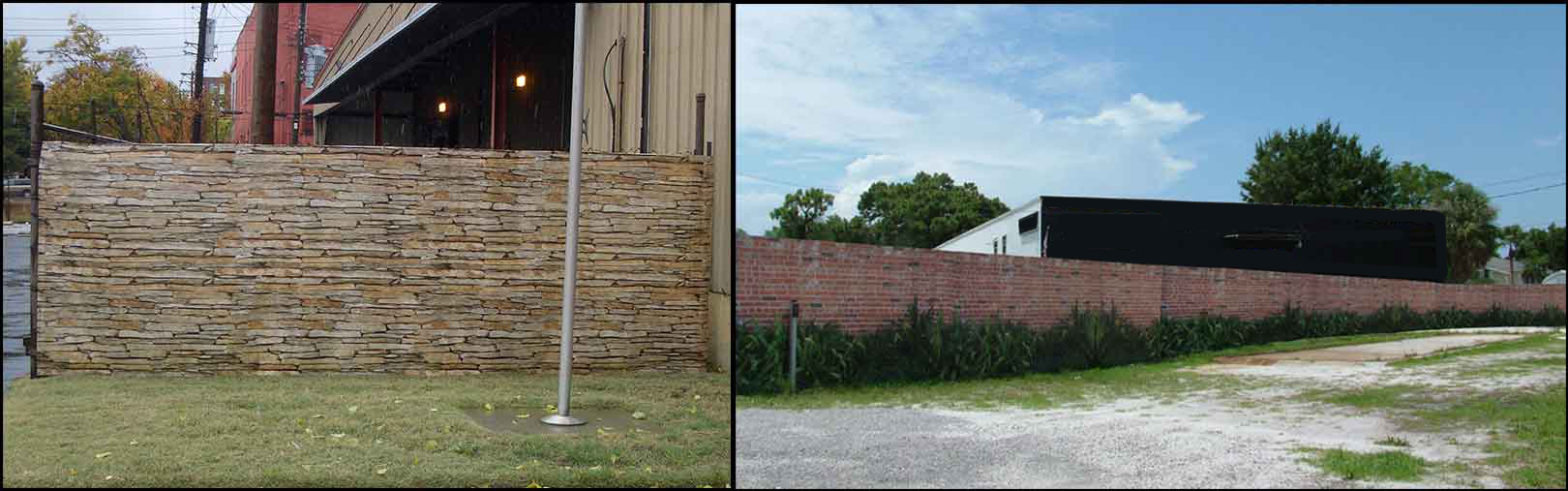

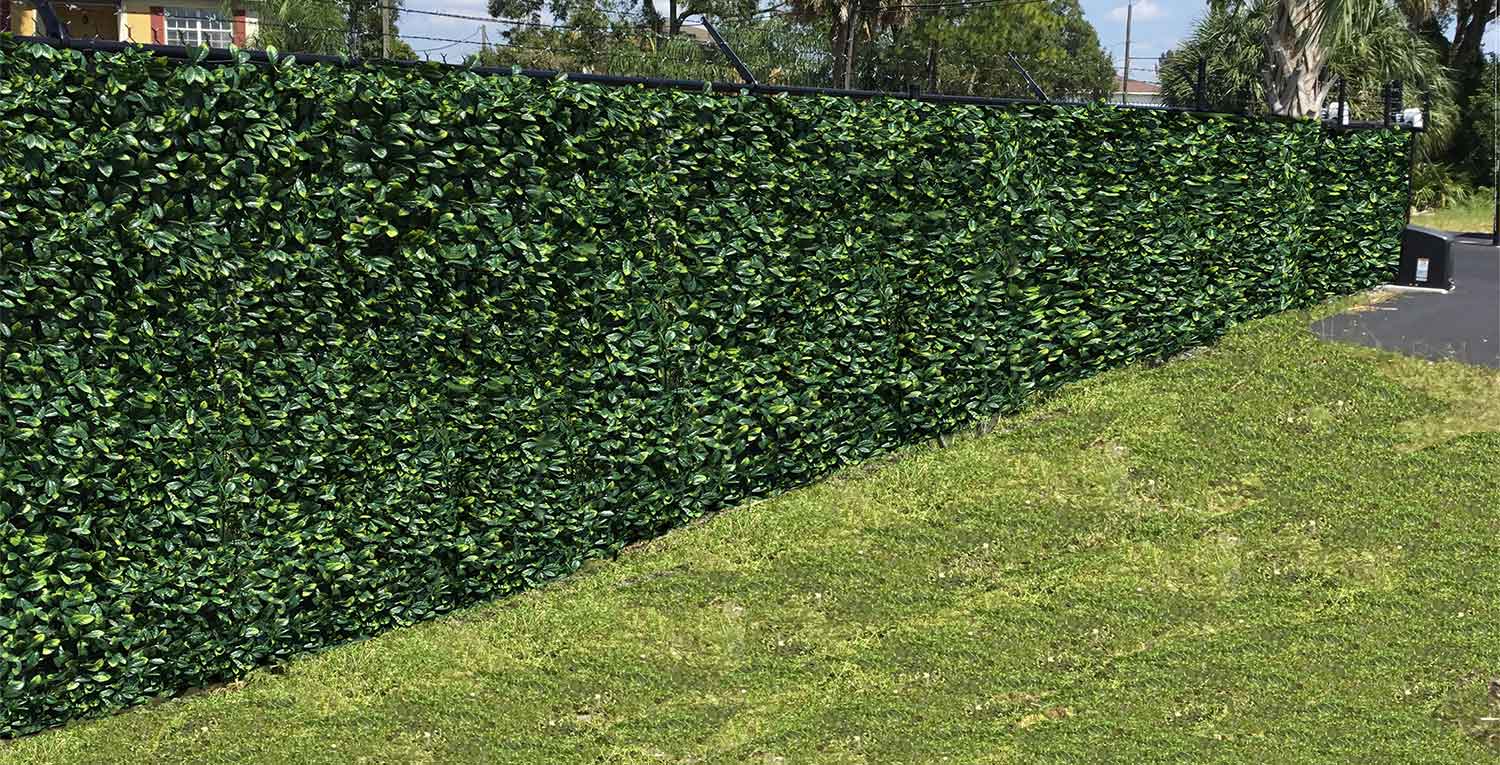

(Note: Foliage and Landscape attachments are not sound barriers. To create your own custom graphic, submit a high resolution photo)

Acoustifence® – Noise Reducing Fences

Acoustifence-Noise Reducing Fences
video
play-sharp-fill

Acoustifence® – Noise Reducing Fences

Acoustifence® – Noise Reducing Fences

Acoustifence-Noise Reducing Fences

Acoustifence® – Noise Reducing Fences

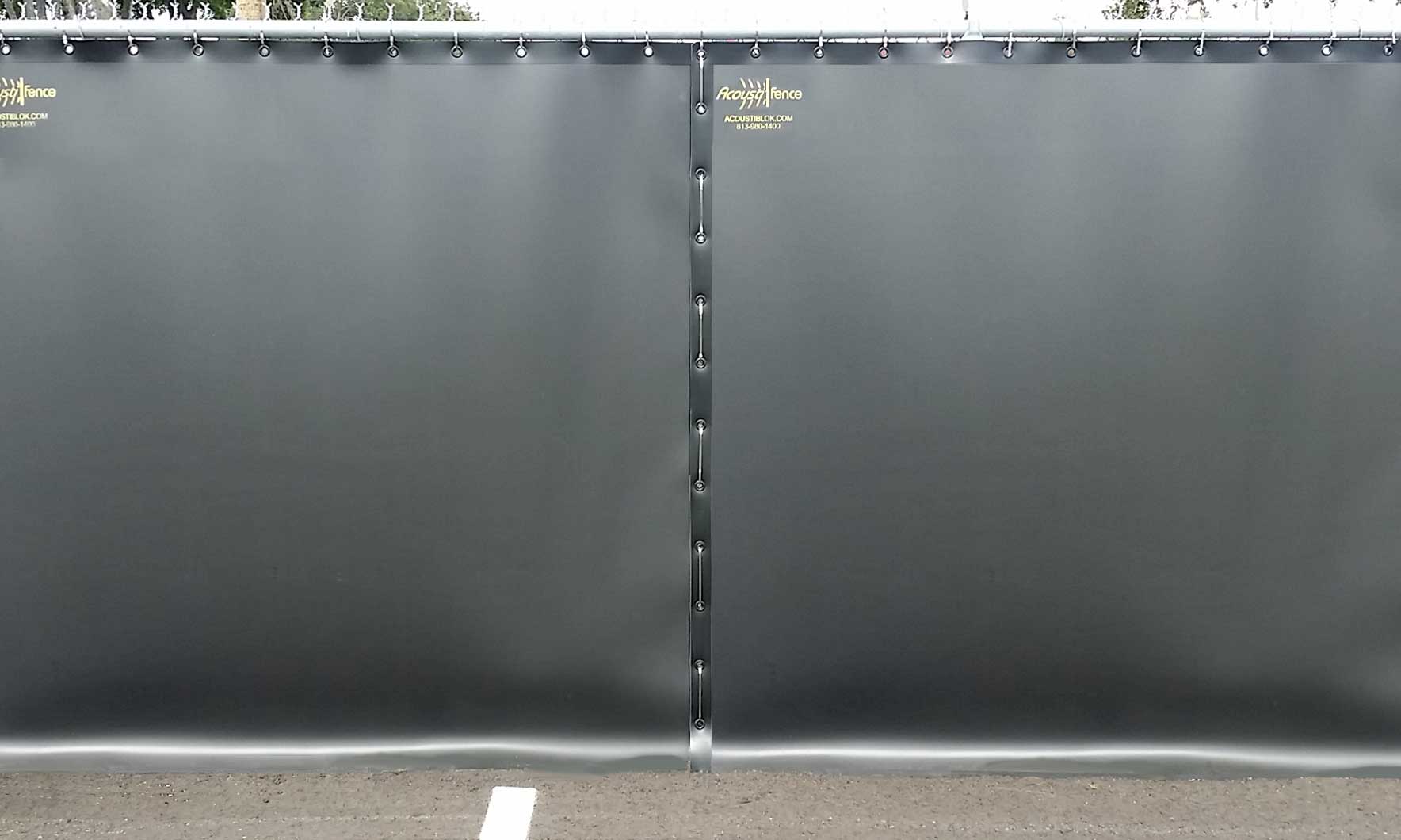

Acoustifence Installed with Stainless Steel Ties

Acoustifence-Noise Reducing Fences

Acoustifence Installed with Stainless Steel Ties

Acoustifence-Noise Reducing Fences
